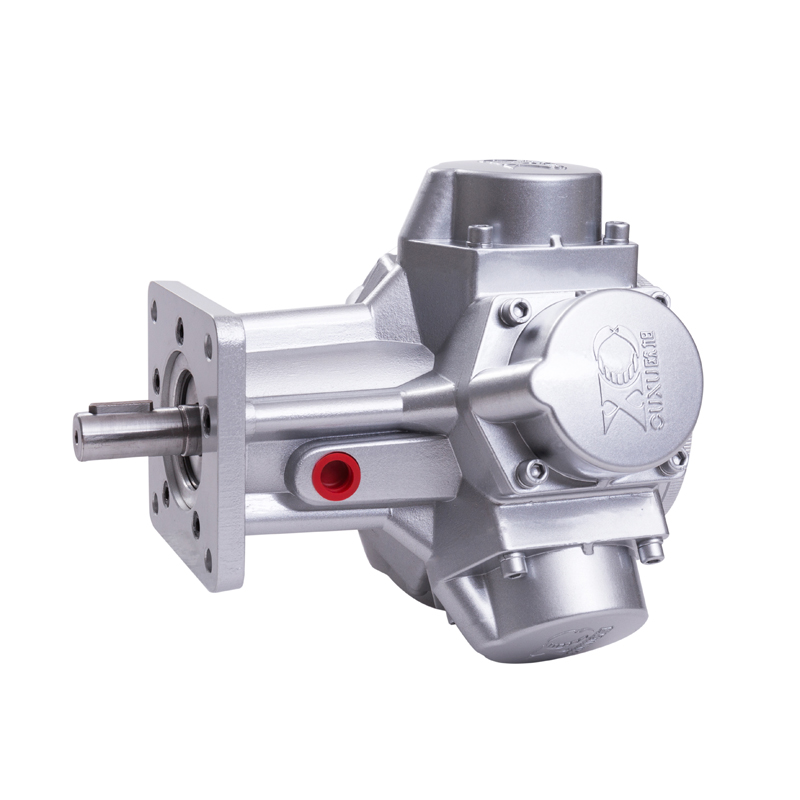

QMH075-F
Please wait a moment...
  • QMH075-F
  • Model:QMH075-F

  • Power:0.75HP

  • Rotate Speed:550r/min(Stepless speed)

  • Idling Speed:1000r/min

  • Rated torque:10.3N.m

  • Starting torque:17.18N.m

  • Maximum Torque:21.48N.m

  • Air Consumption:525L/min

  • Pressure:0.6MPa

  • Weight:9.5Kg

  • Product parameters

    Piston Air Motors Data Download

    QMH075 VIDEO IN YOUTUBE

    Model:QMH075-F piston air motor|pneumatic motor

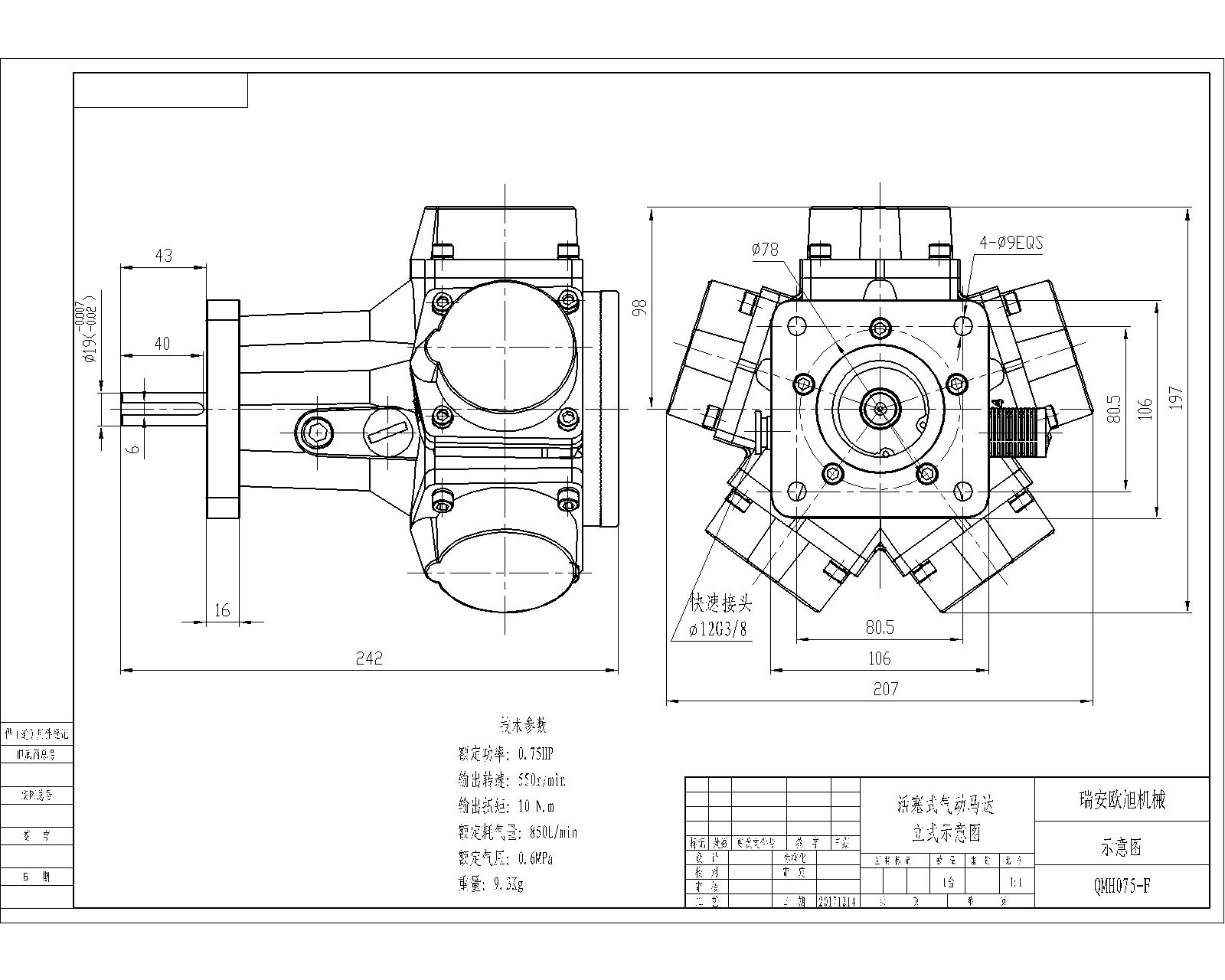

    Installation size:


    Operation Data:

    Model

    Gear Ratio

    Maximum efficacy

    Idling Speed

    (R.p.m)

    Starting torque

    Maximum Torque





    Power

    (HP)

    Torque

    Rotate Speed

    (R.p.m)

    Air Consumption

    (L/min)













    N.m

    lbf.in







    N.m

    lbf.in

    N.m

    lbf.in

    QMH075

    1:1

    0.75

    10

    88.5

    550

    525

    (18.37 CFM)

    1100

    16

    141.6

    20

    177



    5:1



    50

    442.5

    110



    220

    80

    708

    100

    885



    10:1



    100

    885

    55



    110

    160

    1416

    200

    1770



    15:1



    150

    1327.5

    36.6



    73

    240

    2124

    300

    2655



    20:1



    200

    1770

    27.5



    55

    320

    2832

    400

    3540



    30:1



    300

    2655

    18



    37

    480

    4248

    600

    5310



    40:1



    400

    3540

    13.75



    27.5

    640

    5664

    800

    7080



    50:1



    500

    4425

    11



    22

    800

    7080

    1000

    8850



    60:1



    600

    5310

    9



    18

    960

    8496

    1200

    10620



    70:1



    700

    6195

    8



    16

    1120

    9912

    1400

    12390



    80:1



    800

    7080

    6.87



    13.75

    1280

    11328

    1600

    14160



    100:1



    1000

    8850

    5.5



    11

    1600

    14160

    2000

    17700



    120:1



    1200

    10620

    4.58



    9.2

    1920

    16992

    2400

    21240



    150:1



    1500

    13275

    3,7



    7.5

    2400

    21240

    3000

    26550



    200:1



    2000

    17700

    2.75



    5.5

    3200

    28320

    4000

    35400

    Characteristics of OUXU pneumatic air motors:
    1. long time work is not hot, long service life, safety and explosion-proof.
    2. the rotational speed is stepless, the speed is controlled by adjusting the size of air pressure or the
    size of the air intake.
    3. Overload protection, no failure due to overload.
    4. With high starting torque, it can be started directly with load.
    5. Can Positive inversion.
