QMH010
Please wait a moment...
  • QMH010
  • 1
  • 1
  • Model:QMH010

  • Power:0.1HP

  • Rotate Speed:1100r/min可无级调速

  • Idling Speed:2200r/min

  • Rated torque:0.7N.m

  • Starting torque:1.12N.m

  • Maximum Torque:1.4N.m

  • Air Consumption:125L/min

  • Pressure:0.6MPa

  • Weight:1.9Kg

  • Product parameters

    Piston Air Motors Data Download

    QMH010 VIDEO IN YOUTUBE

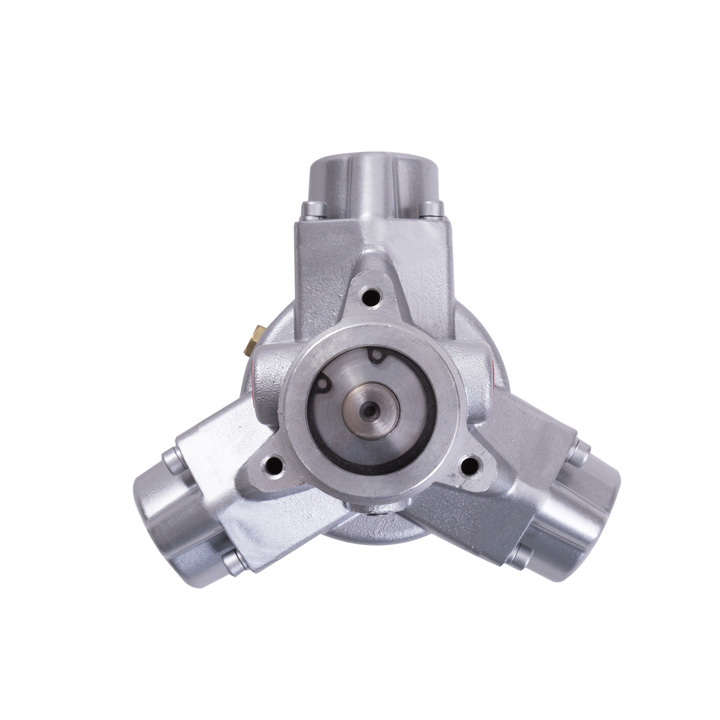

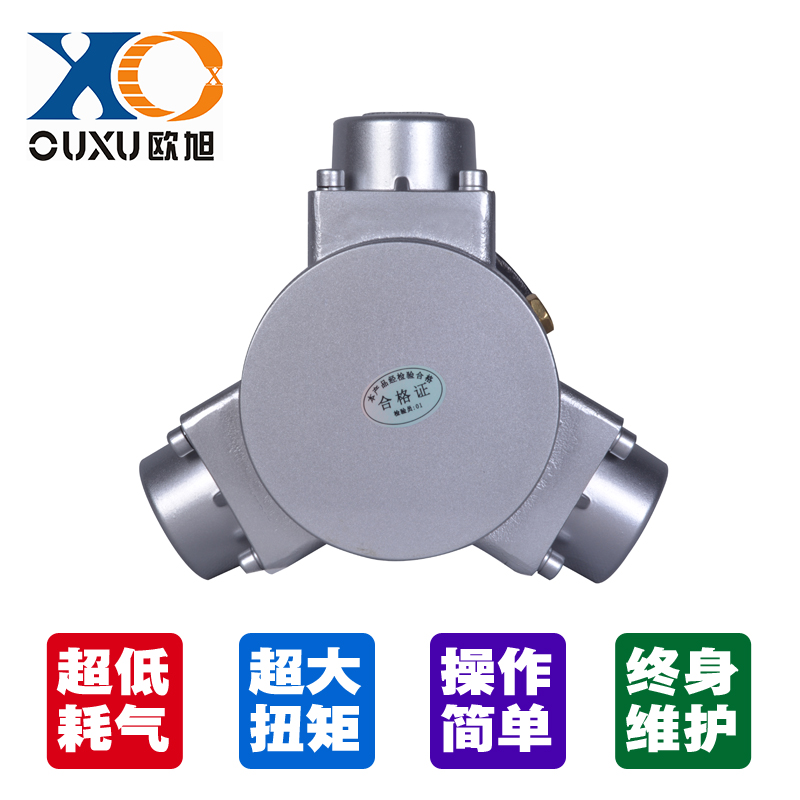

    Model:QMH010 piston air motor|pneumatic motor

    Installation size:

    Operation Data:

    Mode

    Gear Ratio

    Maximum efficacy

    Idling Speed

    (R.p.m)

    Starting torque

    Maximum Torque

    Power

    (HP)

    Torque

    Rotate Speed

    (R.p.m)

    Air Consumption

    (L/min)

    N.m

    lbf.in

    N.m

    lbf.in

    N.m

    lbf.in

    QMH010

    1:1

    0.1

    0.7

    6.2

    1100

    125

    (4.375 CFM)

    2200

    1.12

    9.9

    1.4

    12.3

    1:5

    3.5

    30.9

    220

    440

    5.6

    49.5

    7

    61.9

    1:10

    7

    61.9

    110

    220

    11.2

    99.1

    14

    123.9

    1:20

    14

    123.9

    55

    110

    22.4

    198.2

    28

    247.8

    1:30

    21

    185.9

    36

    72

    33.6

    297.3

    42

    371.7

    1:40

    28

    247.8

    28

    56

    44.8

    396.4

    56

    495.6

    1:50

    35

    309.7

    22

    44

    56

    495.6

    70

    619.5

    1:70

    49

    433.6

    16

    32

    78.4

    693.8

    98

    867.3

    1:90

    63

    557.5

    12

    24

    100.8

    892

    126

    1115

    Characteristics of Ouxu air motor(pneumatic motor):

    1. long time work is not hot, long service life, safety and explosion-proof.

    2. the rotational speed is stepless, the speed is controlled by adjusting the size of air pressure or the size of the air intake.

    3. Overload protection, no failure due to overload.

    4. With high starting torque, it can be started directly with load.

    5. can be reversed and can be reversed.
