Current Location：Home》Product》Piston air motor

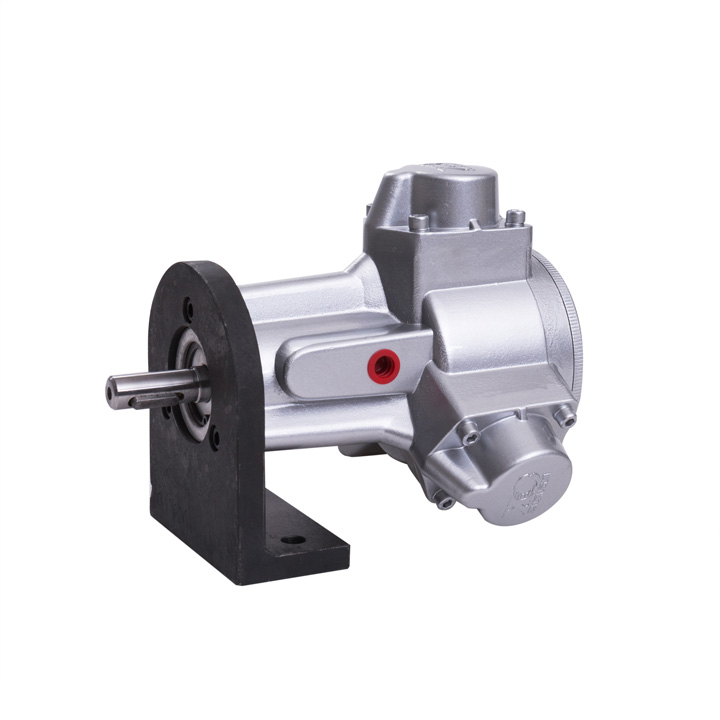

QMH025A-L
Model：QMH025A-L
Power：0.33HP
Rotate Speed：900r/min（Stepless speed）
Idling Speed：1800r/min
Rated torque：3N.m
Starting torque：4.8N.m
Maximum Torque：6N.m
Air Consumption：220L/min
Pressure：0.6MPa
Weight：4.5Kg
Product parameters
Piston Air Motors Data Download
QMH025A VIDEO IN YOUTUBE
Model:QMH025A-L piston air motor|pneumatic motor
Installation size：
Operation Data：
|
Model |
Gear Ratio |
Maximum efficacy |
Idling Speed (R.p.m) |
Starting torque |
Maximum Torque |
||||||
|
|
|
Power (HP) |
Torque |
Rotate Speed (R.p.m) |
Air Consumption (L/min) |
|
|
|
|||
|
|
|
|
N.m |
lbf.in |
|
|
|
N.m |
lbf.in |
N.m |
lbf.in |
|
QMH025A |
1:1 |
0.33 |
3 |
26.5 |
900 |
250 (8.75 CFM) |
1800 |
4.8 |
42.4 |
6 |
53 |
|
|
5:1 |
|
15 |
132.7 |
180 |
|
360 |
24 |
212.4 |
30 |
265.4 |
|
|
10:1 |
|
30 |
265.5 |
90 |
|
180 |
48 |
424.8 |
60 |
531 |
|
|
15:1 |
|
45 |
398.25 |
60 |
|
120 |
72 |
637.2 |
90 |
796.5 |
|
|
20:1 |
|
60 |
531 |
45 |
|
90 |
96 |
849.6 |
120 |
1062 |
|
|
30:1 |
|
90 |
796.5 |
30 |
|
60 |
144 |
1274.4 |
180 |
1593 |
|
|
40:1 |
|
120 |
1062 |
23 |
|
45 |
192 |
1699 |
240 |
2124 |
|
|
50:1 |
|
150 |
1327.5 |
18 |
|
36 |
240 |
2124 |
300 |
2655 |
|
|
60:1 |
|
180 |
1593 |
15 |
|
30 |
288 |
2548.8 |
360 |
3186 |
|
|
70:1 |
|
210 |
1858.5 |
13 |
|
26 |
336 |
2973.6 |
420 |
3717 |
|
|
80:1 |
|
240 |
2124 |
11 |
|
22 |
384 |
3398 |
480 |
4248 |
|
|
100:1 |
|
300 |
2655 |
9 |
|
18 |
480 |
4248 |
600 |
5310 |
|
|
120:1 |
|
360 |
3186 |
7.5 |
|
15 |
576 |
5097.6 |
720 |
6372 |
|
|
160:1 |
|
480 |
4248 |
5.6 |
|
11.2 |
768 |
6796 |
960 |
8496 |
|
|
200:1 |
|
600 |
5310 |
4.5 |
|
9 |
960 |
8496 |
1200 |
10620 |
Characteristics of OUXU pneumatic air motors:
1. long time work is not hot, long service life, safety and explosion-proof.
2. the rotational speed is stepless, the speed is controlled by adjusting the size of air pressure or the
size of the air intake.
3. Overload protection, no failure due to overload.
4. With high starting torque, it can be started directly with load.
5. Can Positive inversion.
