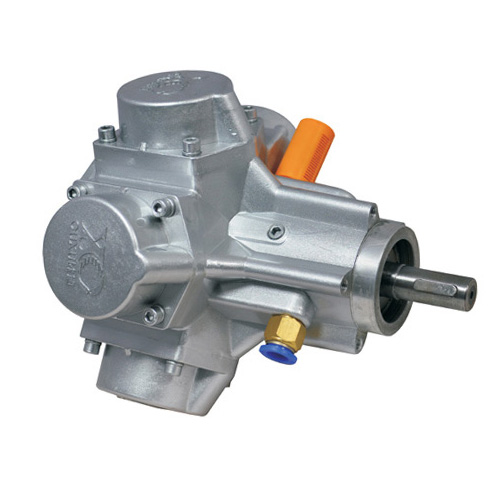

QMH100
Model：QMH100
Power：1HP
Rotate Speed：400r/min（Stepless speed）
Idling Speed：800r/min
Rated torque：18N.m
Starting torque：28.8N.m
Maximum Torque：36N.m
Air Consumption：545L/min
Pressure：0.6MPa
Weight：12Kg
Product parameters
Piston Air Motors Data Download
QMH100 VIDEO IN YOUTUBE
Model:QMH100 piston air motor|pneumatic motor
|
Model |
Gear Ratio |
Maximum efficacy |
Idling Speed (R.p.m) |
Starting torque |
Maximum Torque |
||||||
|
|
|
Power (HP) |
Torque |
Rotate Speed (R.p.m) |
Air Consumption (L/min) |
|
|
|
|||
|
|
|
|
N.m |
lbf.in |
|
|
|
N.m |
lbf.in |
N.m |
lbf.in |
|
QMH100 |
1:1 |
1 |
18.71 |
165.5 |
380 |
560 (19.6 CFM) |
760 |
29.94 |
264.96 |
37.42 |
331 |
|
|
5:1 |
|
94 |
831.9 |
76 |
|
152 |
150 |
1327.5 |
188 |
1663.8 |
|
|
10:1 |
|
187 |
1654.9 |
38 |
|
76 |
299 |
2646.1 |
374 |
3309.8 |
|
|
30:1 |
|
560 |
4956 |
12.7 |
|
25.5 |
896 |
7929.6 |
1120 |
9912 |
|
|
40:1 |
|
748 |
6619 |
9.5 |
|
19 |
1196 |
10584 |
1496 |
13239 |
|
|
50:1 |
|
935 |
8274.7 |
7.6 |
|
15 |
1496 |
13239 |
1870 |
16549 |
|
|
60:1 |
|
1122 |
9929 |
6 |
|
12 |
1795 |
15887 |
2244 |
19859 |
|
|
70:1 |
|
1309 |
11584 |
5.4 |
|
10.8 |
2094 |
18531 |
2618 |
23168 |
|
|
80:1 |
|
1496 |
13246 |
4.7 |
|
9.5 |
2393 |
21183 |
2992 |
26479 |
|
|
100:1 |
|
1871 |
16558 |
3.8 |
|
7.6 |
2992 |
26479 |
3740 |
33116 |
Characteristics of OUXU pneumatic air motors:
1. long time work is not hot, long service life, safety and explosion-proof.
2. the rotational speed is stepless, the speed is controlled by adjusting the size of air pressure or the
size of the air intake.
3. Overload protection, no failure due to overload.
4. With high starting torque, it can be started directly with load.
5. Can Positive inversion.
